AEC810MV


AEC Granulator Screen

Model: 810MV


• Made from highest quality US Steel: Mild, Stainless and Plate

• Manufactured to exceed OEM specifications

• Custom screen hole shapes are available in: Circles, Squares, Hexagons and Octagons

• Screen hole sizes are available: 3/32 inch through 3 inch

• Metric hole sizes also available in millimeters or centimeters







AEC Granulator Replacement Screens

Part #: AEC810MV-332            Holes: 3/32 inches

Part #: AEC810MV-18              Holes: 1/8 inches

Part #: AEC810MV-532            Holes: 5/32 inches

Part #: AEC810MV-316            Holes: 3/16 inches

Part #: AEC810MV-732            Holes: 7/32 inches

Part #: AEC810MV-14              Holes: 1/4 inches

Part #: AEC810MV-516            Holes: 5/16 inches

Part #: AEC810MV-38              Holes: 3/8 inches

Part #: AEC810MV-12              Holes: 1/2 inches

Part #: AEC810MV-58              Holes: 5/8 inches

Part #: AEC810MV-34              Holes: 3/4 inches

Part #: AEC810MV-78              Holes: 7/8 inches

Part #: AEC810MV-1                Holes: 1 inches

Part #: AEC810MV-2                Holes: 2 inches

Part #: AEC810MV-3                Holes: 3 inches

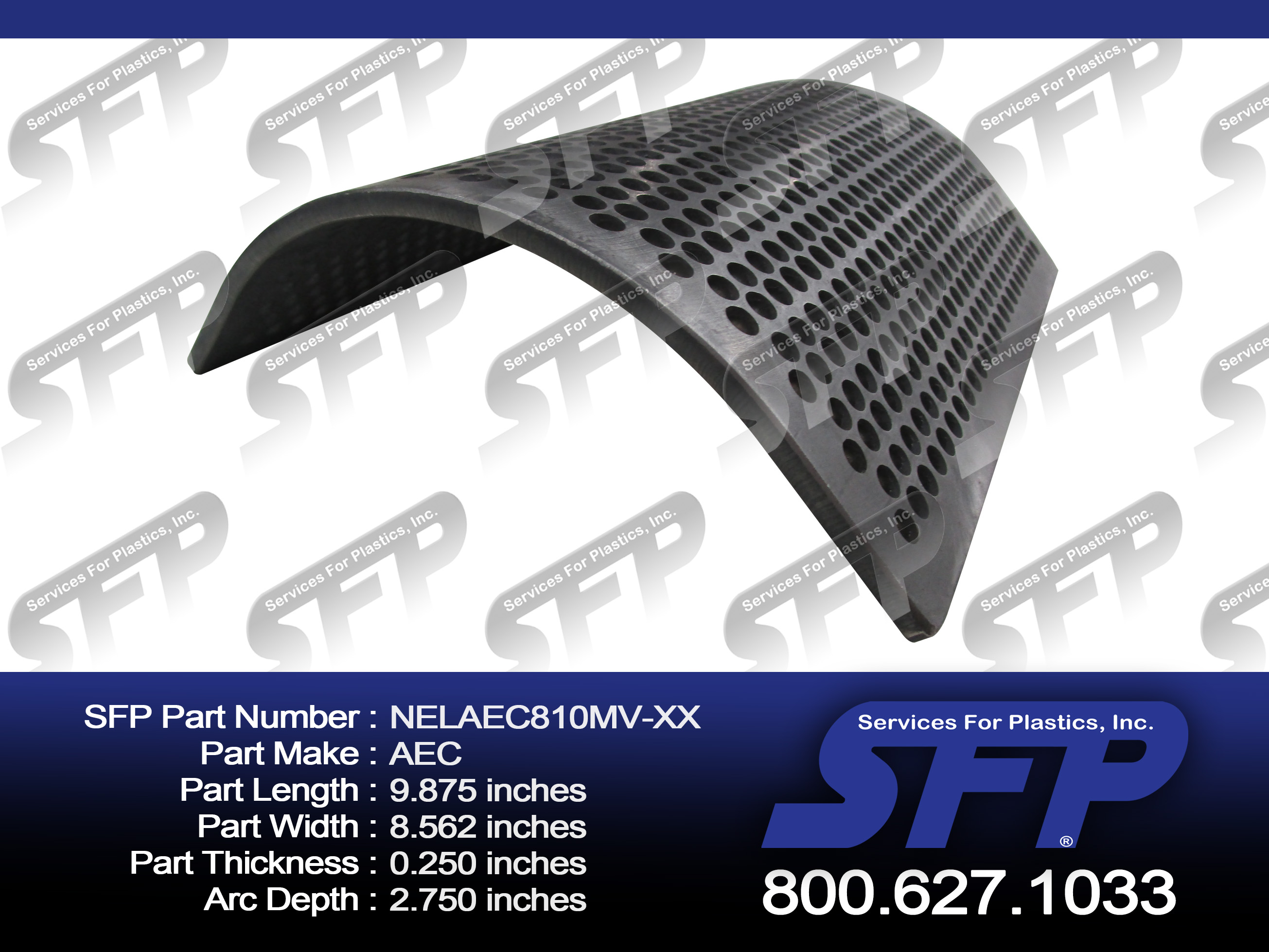

Granulator Screen Size

Part Length: 9.875 inches

Part Width: 8.562 inches

Part Thickness: 0.250 inches

Arc Depth: 2.750 inches
