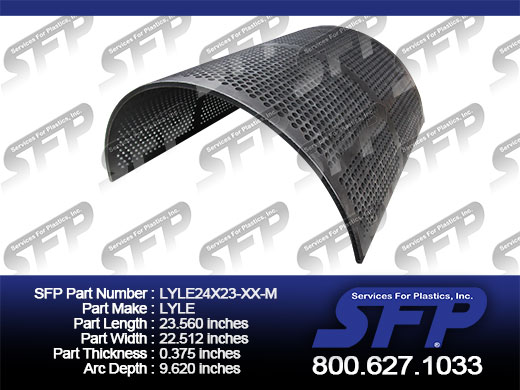

LYL24X23


Lyle Granulator Screen

Model: 24X23


• Made from highest quality US Steel: Mild, Stainless and Plate

• Manufactured to exceed OEM specifications

• Custom screen hole shapes are available in: Circles, Squares, Hexagons and Octagons

• Screen hole sizes are available: 3/32 inch through 3/8 inch

• Metric hole sizes also available in millimeters or centimeters







Lyle Granulator Replacement Screens

Part #: LYL24X23-332-M            Holes: 3/32 inches

Part #: LYL24X23-18-M              Holes: 1/8 inches

Part #: LYL24X23-532-M            Holes: 5/32 inches

Part #: LYL24X23-316-M            Holes: 3/16 inches

Part #: LYL24X23-732-M            Holes: 7/32 inches

Part #: LYL24X23-14-M              Holes: 1/4 inches

Part #: LYL24X23-516-M            Holes: 5/16 inches

Part #: LYL24X23-38-M              Holes: 3/8 inches

Granulator Screen Size

Part Length: 23.560 inches

Part Width: 22.512 inches

Part Thickness: 0.375 inches

Arc Depth: 9.620 inches
